Palladium

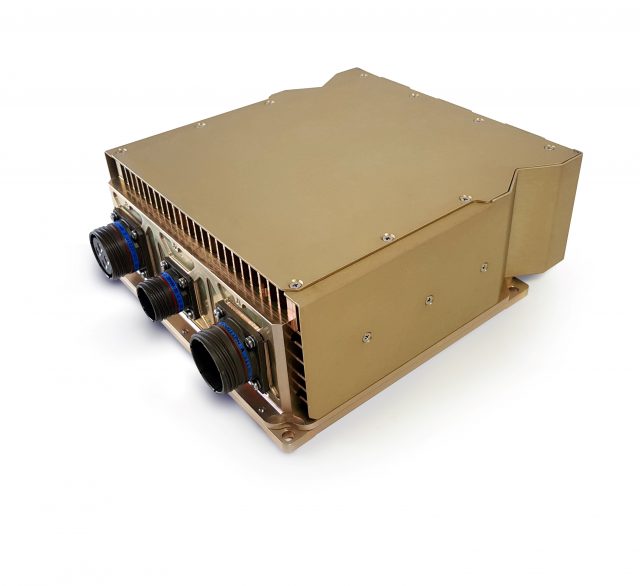

The Palladium transforms a permanent-magnet generator's variable amplitude and varying frequency output to well-regulated DC.
Multiple Palladium units can share the aircraft's DC supply precisely, forming a redundant system where a faulty device may cut itself off and transfer the load
to the other.
Various safety considerations are implemented to protect and eliminate fault effects.
The GCU power, dimensions, and cooling can be customized according to the customer's needs.
Multiple Palladium units can share the aircraft's DC supply precisely, forming a redundant system where a faulty device may cut itself off and transfer the load
to the other.
Various safety considerations are implemented to protect and eliminate fault effects.
The GCU power, dimensions, and cooling can be customized according to the customer's needs.
Download Datasheet
Palladium
Enter your details to download
Error: Contact form not found.
Specifications
No. of Axes
1
Power supply [VDC]
24 to 31, Programmable
Current, DC or trapezoidal BLDC motor [A]
90 for a single unit, 180 for two paralleled units
Drive efficiency [%]
130
Protection
Over temperature, ripple, over current, over / under voltage, over load, under speed, missing phase, reverse current limit.
Communications
RS-422 CANopen, Ethernet and EtherCAT (optional, upon request)*
Dimensions [mm^3]
215 x 233 x 90
Weight [kg]
3.900
