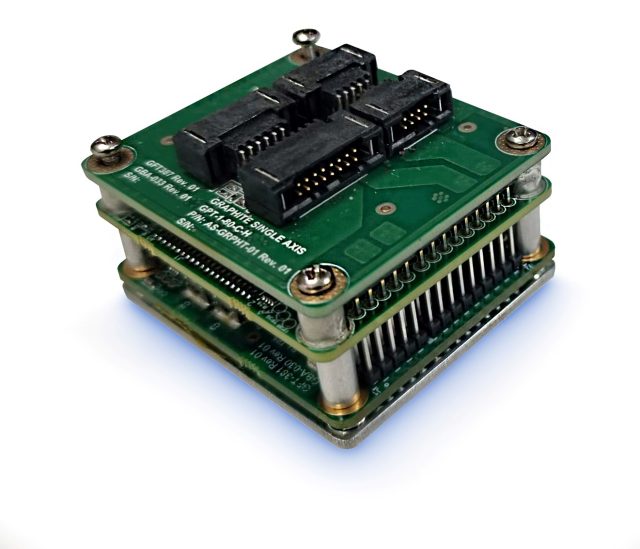

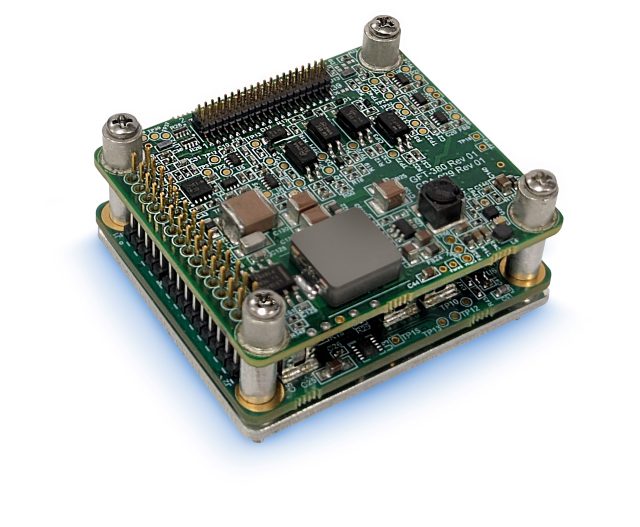

Graphite
A family of high power density, compact and rugged drives for small to medium BLDC, DC and Step motors.
An ideal combination of advanced servo control functions, quality and economical cost.
An ideal combination of advanced servo control functions, quality and economical cost.
Main features
1
Super compact footprint
2
High power to size ratio
3
Advanced servo control functions
Download Datasheet
Graphite
Enter your details to download
Error: Contact form not found.
Specifications
No. of Axes
1
Motor types
BLDC, Brushed DC and Stepper
Power supply [VDC]
12-80 (Surges up to 100)
Current, DC or trapezoidal BLDC motor [A]
15 / 22
Feedback types [MHz]
Digital Incremental (up to 3MHz), Sin-Cos, Absolute: SSI, eBis, Endat, Hall
Digital I/O
Up to 2 Digital inputs and 1 output, opto-isolated
Reliability
MTBF >1,000,000 operation hours at 40˚C
Communications
RS232/ RS422, CAN, RS-485, SPI
Temperature [C]
71
Dimensions [mm]
47 x 41 x 34
Weight [gr]
100
Cooling
By base plate
Weight [kg]
0.060
